Description

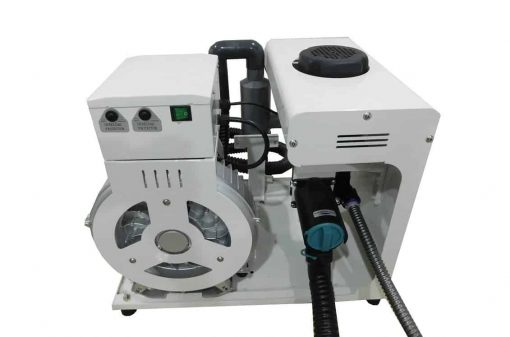

GS-05 Dental Vacuum Pump

GS-05 Dental Vacuum Pump

support six dental chair suction unit with silent oilless vacuum pump





Model	Volt./Hz	Power	Vacuum Pressure	Pump flow	Noise  dB(A)	N.W.(Kg)	Dimension(mm)
GS-05F	220-380   50/60Hz	2KW	≥-20Kpa	2100L/min	50	71	77*65*72.5





Sensitive response: quick action, powerful suction, can reach the high vacuum suction working condition very quickly.



Easy operation: compact structure, separator and drainage system can be disassembled and reinstalled easily, convenient to clean and re-fix.



Fashion appearane: fashion colors, human body engineering design, showing fashion and vitality.



High vacuum: with dentistry top technology, very strong suction, stable power supply during operation to provide efficient negative pressure.



Stable working performance: with the worldwide newest technology, service life can reach to 10000 hours, and during the daily use, almost maintenance free.



Easy maintenance: fully automatic induction design, automatic start-stop control, automatic drainage.



Quiet & Clean: low working noise, new design, brings you a health life from science and techology.



Dental suction unit with INVERTER

Model：GS-05

Power：2000W

Note:For 5-8pcs dental chairs

Power: 2000W Vacuum:≥-20KPa Max. pump flow: 2100L/min Air inlet diameter: 50mm Air outlet diameter: 63mm Drainage diameter: 20mm Net/Gross weight: 71/96kg Product size: 770*650*725mm

If you don’t use 8pcs dental units at the same time, GS-05 is enough for your usage. If you use 8pcs dental units at the same time, we suggest the model GS-07.

Suction GS-07 for 8 to 10pcs dental chairs
Model: GS-07

Power: 2.2 KW
Volt./Hz: 380V/50HZ or 60HZ
Vacuum Pump: >=-15KPa
Max Air Flow: 2100L/min
Air Inlet Tubing: 50mm
Air Outlet tubing: 63mm
Drainage outlet tubing: 20mm
Product Size: 785*650*755MM (L*W*H)
Net/Gross Weight: 74/101kg

With Frequecy converter
Product price: R 75,000.00
