Description

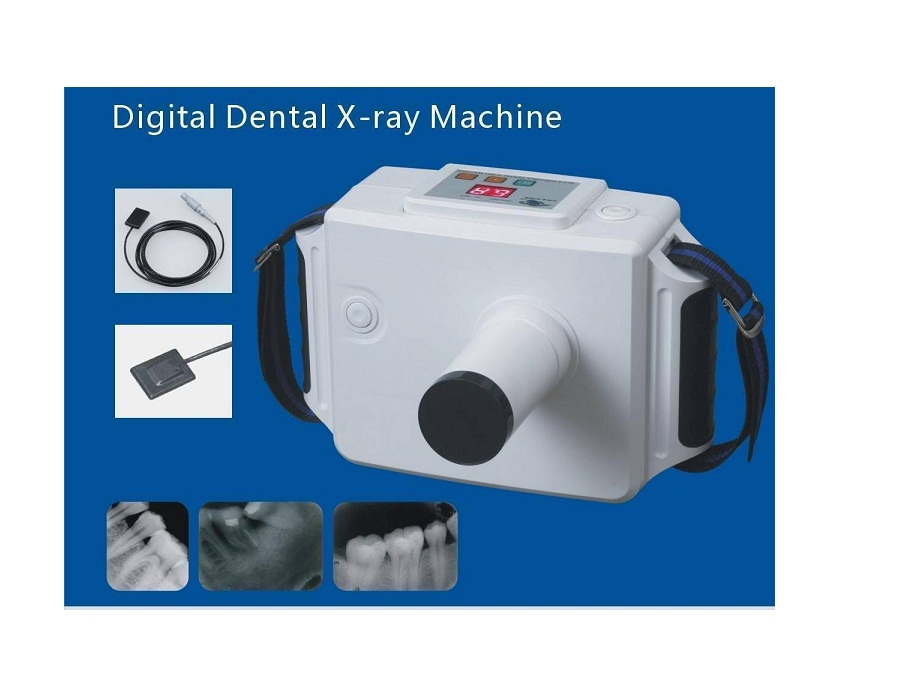

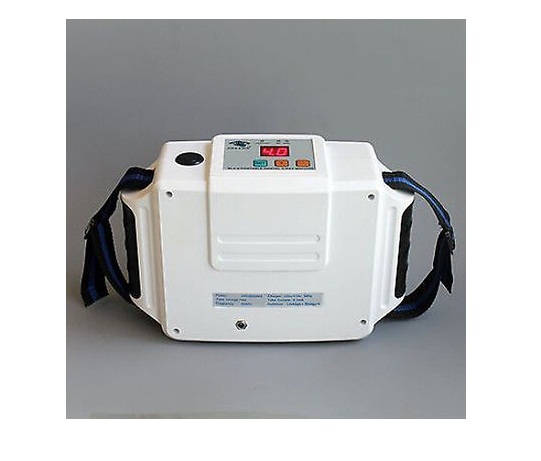

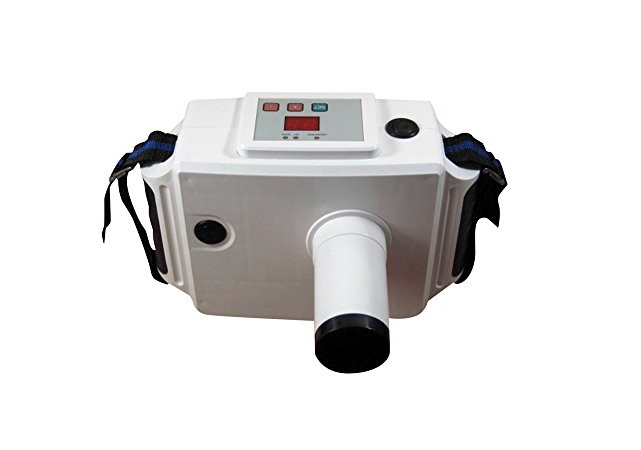

LK-C26 Dental Portable X Ray Unit Machine

LK-C26 Dental Portable X Ray Unit Machine

This model combines the advantages of similar PPE s found at home and abroad;  It eliminates the shortcomings of the on-frequency X-ray machine high current  intensity and excess amounts of scrap x-rays). The tube voltage frequency of  this machine is 30 KHz, and the tube current is 0.1 MA. The radiation scope is  at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This  is an innovative Chinese design named the “Green X-ray Machine. ”

All the components of this PPE were originally imported to achieve an  acceptable tolerance required for the digital controls and the machine. By doing  this, PPE perform ance is more stable and reliable.

Using a Toshiba 0.3 micro-focus tube, the image is clearer and more delicate.  This machine uses components from well established suppliers, allowing us to  deliver to our customers a PPE of high quality.

There are films included for testing purpose and all the consumables can be  replaced by other similar PPE s.

There are vacuum components and high-pressure parts inside of the machine, so  for your safety and the maintenance of the machine, please do not open the  machine. Service and maintenance should only be performed by a trained  professional.

The tube head is equipped with excellent radiation-shield protection except the  radial mouth, and tests have shown that the radial index is zero. Safety is  guaranteed.

Non-film inspection and storage can be realized when corresponding to a sensor.

Techincal specification:

Power: 24V 8000MA Charger 220V/110V 50Hz

Tube voltage: 70Kv

Tube current: 0.1MA

Frequency: 30Khz

Time of Exposure: 1-9.5

Radiation leakage: 20ngy/h

Rated power: 60W

Net Weight 2.2kg

Package Weight: 7.0kg 15.43lb.)

Package Size: 45cm x 45cm x 35cm 17.72in x 17.72in x 13.78in)

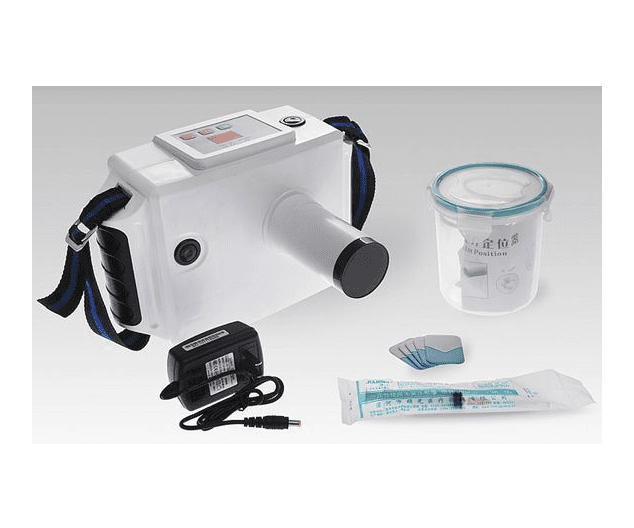

Packaging list:

Main Unit*1

Charger*1

Dental Film Position Indicator*1

Dental Films for Commissioning*5

Packing Instruction*1

Warranty Card*1

Large Packing Box*1
