Mission U 120 Urine Analyzer

Mission U 120 Urine Analyzer

Category:

Description

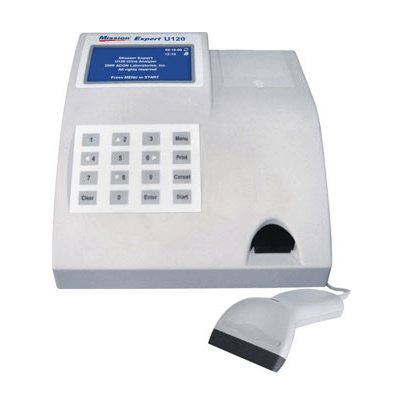

Mission U 120 Urine Analyzer



https://www.aconlabs.com/wp-content/uploads/2016/12/mission-u120-200px.png

The Mission® U120 Urine Analyzer is a great tool to use with the Mission Urinalysis Reagent Strips.  This analyzer has the capability of running up to 120 tests per hour and saving and recalling 2000 results automatically.  The Mission® U120 Urine Analyzer facilitates high volume testing and provides a sense of confidence in the accuracy of the results. This analyzer is 510k) Cleared and CLIA Waived for use with the Mission® Urinalysis Reagent Strips and Mission® Urine Controls.

Fast and Accurate

• Up to 120 tests/hour in Continuous Test Option

• Test categories include Routine, STAT and QC

• Automatic calibration for accurate results and easy operation

Convenient Features

• Can read strips with up to 11 parameters, including Microalbumin/Creatine/Calcium

• Record Operator/Patient ID by Manual Entry and Barcode Reader

• Capability of data transfer to an external computer or LIS

Reliable

• Saves and recalls the last 2,000 results automatically

• Can print up to 3 copies per test for convenient reviewing and easy record keeping

• Option to print results on sticker paper for quick and simple record management

PPE Specs

Features Specifications
Type Manual
Methodology Reflectance Photometry
Detection Photosensitive Diode
Throughput Single Test Option: 60 tests/hour

Continuous Test Option: 120 tests/hour
Test Categories Routine, STAT and QC
Memory Last 2,000 results
Strip Incubation Time 1 Minute
Wavelength of Monochromatic LED 525 nm and 635 nm
Default Strips 8, 9, 10, 11 Parameters 108 mm x 5 mm)
Strips Available 111 parameters 108 mm x 5 mm); see URS Parameters
Total Combinations Per Analyzer 4 Combinations
Analyzer Ports RS232C Port for Barcode Reader or Data Transfer

USB Port for Data Transfer

25 Pin Parallel Port for External Printer
Data Entry Capabilities Operator/Patient ID – Manual Entry and Barcode Reader Up to 20 characters)
Connection Capabilities Internal Thermal Printer included)

Optional External Printer not included)

 RS232C Barcode Reader optional)

USB or RS232C Data Transfer Cable optional)
Major Readable Barcodes Code 128, Code 39, Codabar NW-7), EAN 8, EAN 13, Interleave 25 , UPCA, UPCE
Calibration Automatic
Available Languages on the Screen English and additional languages)
Operating Conditions 0-40°C 32104° F); < 85% RH
Storage Conditions  -5-50°C 23122° F); < 90% RH
Power Source 100-240 VAC, 50-60 Hz
Dimensions L x W x H) 27.2 cm x 26.9 cm x 14.6 cm 10.7″ x 10.6″ x 5.7″ )
Display Dimensions L x W) 10.8 cm x 5.7 cm 4.2″ x 2.2″)
Weight 2.6 kg 5.7 lbs) without batteries or power supply

PPE Accessories



https://www.aconlabs.com/wp-content/uploads/2016/12/barcode2-3.png

Barcode Reader

Optional Bar-code Reader connects to the analyzer for faster input of information. It scans the canister code for quick canister code recognition to operate the analyzer as well as quick entry of Patient ID. Both canister code and Patient ID can be entered manually as well.

https://www.aconlabs.com/wp-content/uploads/2016/12/paper_rolls2.png

Printer Paper Rolls

Printer paper rolls is available in both Thermal paper and Sticker paper. Printing results may either be automatic or manual. Can print up to 3 copies per test results for convenient record management.

https://www.aconlabs.com/wp-content/uploads/2016/12/data_transfer.png

Data Transfer

Data Transfer Kit is used for data transfer to Personal Computer PC) or Laboratory Information System LIS). RS232 cable is required for connection to a personal computer and the analyzer in order to download data to PC or LIS.
