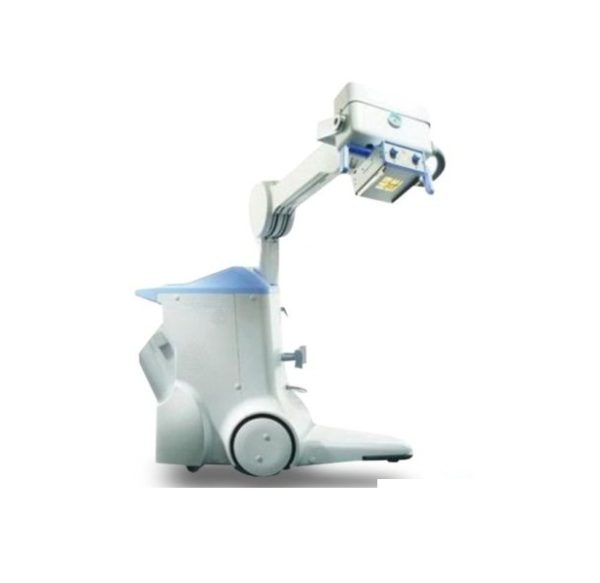

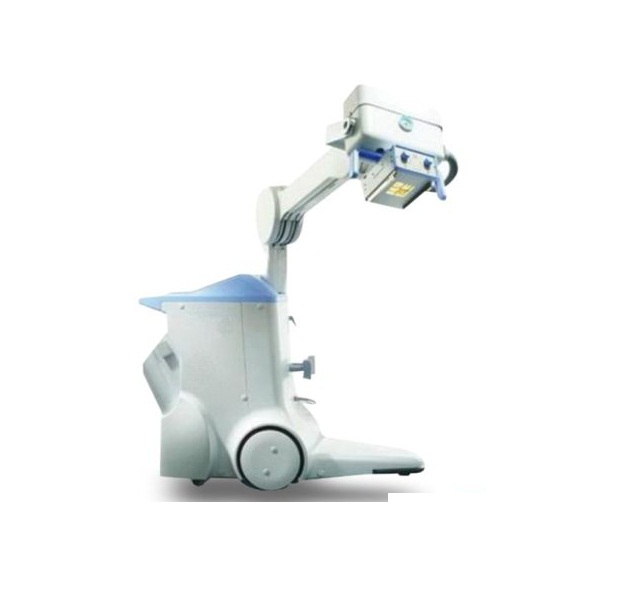

Mobile Digital X-Ray Machine / MY-D049

Mobile Digital X-Ray Machine / MY-D049

Category:

Description

Mobile Digital X-Ray Machine / MY-D049

D049 3.jpg



Part Name

Quantity
High Voltage Generator X-ray tube 1
Frame 1
FP detector 1
Collimator 1
Acquisition system 1
Optional parts
Remote Controlled Handswitch 1
Vertical bucky stand 1
Grid 1



Medcial equipment mobile digital x ray machine Specification:

Frame
Frame form Folding
Length Min=1400mm;Max=1834mm
Width 730mm
Height Min=1430mm;Max=2000mm
Tube vertical travel range 525~1992mm
The rotating angle ±90°
The maximum distance from center to focus 1153mm
The maximum height of the obstacles 25mm
Control mode manual

X-ray tube:
Tube form combined
Power 30KW
Focus 0.6/1.3mm
Anode heat storage capacity 107KJ
Housing heat storage capacity 375KJ
Maximum anode heat dissipation rate 300W
Maximum housing heat dissipation rate 40W
Anode rotation speed 3000rmp
Target Angle 16°

Generator
Rated power 30KW
Inverter frequency 100kHz
kV range 40~125kV   step=1kV
Maximum mA 425mA
mAs range 0.5-200mAs
Focal Spots shift depend on radiography
conditions shifted automatically
Time of Radiography 1ms~1.3s
Numbers of APR



 40 20 for small focus ,20 for big focus)
Exposure parameters adjustment method KV,MAS control

Collimator:
Adjustment mode manual
Average illuminance ≥100LuxSID=1m)
Lamp timer 30S
Voltage and power 12VAC, 9A
Inherent filtration ≥2.0mmAL
Light field shape rectangle
Tape measure With a tape measure SID function

Detector:
Pixel area 14X17 inch
Conversion screen Amorphous silicon,DRZ
Fill Factor 100%
Image Preview time 8S
A/D output 14-bits
Pixels matrix 3072 x 2560
Pixels Pitch 139 um
Spatial resolution 3.6LP/mm
Power supply 100-240VAC,47-63Hz
WeightIncluding housing ) about 5Kg
Cable length 8m

Imaging working station:
CPU 2.0GHz
Memory DDR2 2G
H ard disk 320G
Operating system WINDOWS     XP
Peripheral USB,Mouse,Keyboard ect
Screen 15 inch touch LCD

Packing Dimensionsmm) and weightkg)
Dimension 1698*858*1662
Weight 355
