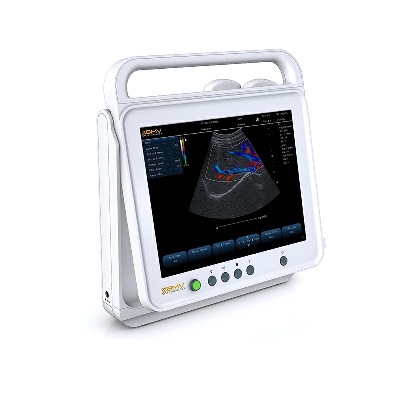

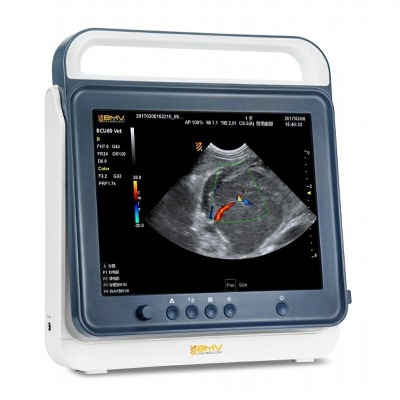

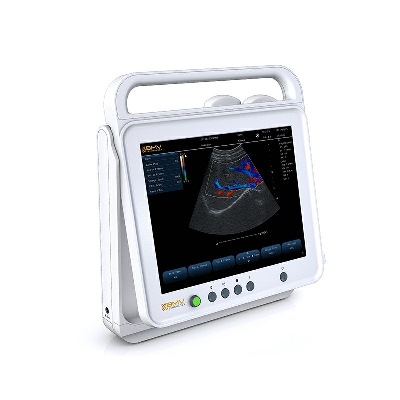

PT50C Touch Color Doppler Ultrasound Scanner System

PT50C Touch Color Doppler

PT50C is the most lightweight hand-carried portable ultrasound with three probe ports in the world, deliver superb image quality in many clinics, hospitals or practice settings across multiple examinations.

Applicable to different body scans, for example, Abdomen,Obstetrics,Gynecology,Cardiology,Small

Parts,Urology,Kidney,MSKMusculoskeletal);Carotid; Orthopedic; Vascular

• and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call,

etc

Category: Uncategorized Tag: PT50C Touch Color Doppler Ultrasound Scanner System

Description

Description

PT50C Touch Color Doppler Ultrasound Scanner System

Description

An entry-level fully-featured touch Color Doppler ultrasound system, PT50C employs the advanced technologies and ergonomic concept developed for next generation imaging systems, in all applications. Simple touch to save time, this simple operation helps enhance exam PPE ivity and increase patient throughput, also minimize most of users learning curve. In additional, PT50C is the most lightweight hand-carried portable ultrasound with three probe ports in the world, deliver superb image quality in many clinics, hospitals or practice settings across multiple examinations.

Key Features:

15 inch high resolution, wide-angle color LCD with 45 degree tilt functionality
Three transducer port is designed to meet the different clinical applications
Advanced imaging technology and superior image quality can provide fast and precise scanning.
Replaceable long life battery
iBscan™ Quick Image Optimization
Annotation library for quick comment
iBstation™ Patient information management system
USB image transfer and software upgrade
Image clipboard for thumbnail view
The supported DICOM 3.0 can communicate with PACS system of the hospital seamlessly
Special-designed probe holder, no need for extra assistance
Modular software, easy for upgrade, free lifetime upgrade to new versions

Specification

Application scenarios: Emergency,Ward bedside,Anesthesia guidance,Outpatient clinics,Health checkup,Disaster preparedness,Remote ambulance,ICU / CCU,Intraoperative,Pain management,Epidemic to the countryside,Infectious cluster ambulance

Ultrasound platform: Based on Linux, stable performance, security data

Touch Screen: Fully resistive touch screen

Physical channels: 32 channels

Transducer: 128 elements, 212Mhz

Transducer connector: 3 active, unique micro connector

Battery Working time: Continuous scan greater than 5 hours with 2 batteries, replaceable battery design

Technology Descriptions: Wide-angle imaging, Panoramic focusing technology, Rolling M technology, Cloud processing technology, Noise suppression, Image enhancement

Simplified Workflow: Zoom, iBscan™, iBstation™, DICOM3.0

Ergonomics: 15’ high resolution LCD Monitor; Adjustable LCD view angle; Convenient cable probe hook

Size Net weight: Height: 402 mm Width: 385mm Depth: 53mm, approx. 4.8 kg

Connection Port: WIFI,2*USB,S-Video ,HDMI

Optional: Trolley Cart, Needle-guided brackets,Transducer,Wheeled Transport case, DICOM 3.0, Video printer,Optional Warranty

Warranty: 12 months warranty since ex-factory date

Application:	• Applicable to different body scans, for example, Abdomen,RePPE ion,Gynecology,Cardiology, Small Parts,Urology,Kidney,MSKMusculoskeletal);Carotid; Orthopedic; Vascular
Application:	• Clinic departments, for example emergency, hospitals, clinics, out calls, etc.
Imaging Modes:	B,M,2B,B/M,4B,C,PW,POWER, DIR POWER, THI
Gray scale levels:	256
Transducer Type:	Convex Array,Linear Array,Endocavity Array
Transducer frequency:	212Mhz
Transducer connector:	3 active transducer connector ports
Scanning depth:	up to 351mm
Standard Features	An ideal choice for fully-featured touch COLOR DOPPLER system With a best-in-class combination of performance and affordability With a new platform based on Intel’s powerful processor With latest imaging technologies and convenient workflow options, simple touch, save time!
Language	Software: English, Chinese, Spanish,Russian,Italian, and more Keyboard Input: English, Chinese, and more User Manual: English, Chinese
