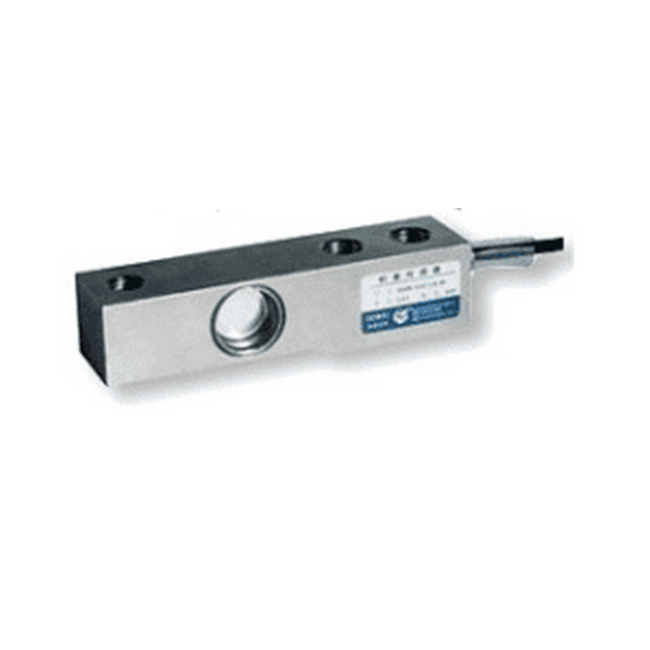

Shear Beam Load Cell - 1500kg - Shearbeam Load Cells 1.5ton
Shear Beam Load Cell - 1500kg - Shearbeam Load Cells 1.5ton - Image 2

Shear Beam Load Cell – 1500kg – Shearbeam Load Cells 1.5ton

R1,822.00 Ex VAT

  • Shear beam load cells are widely used where operators need to measure compressive forces
  • Weight: 1500kg
  • Accuracy class OIML Class III
  • Rated output (mV/V) 3.0 ± 0.003
  • Combined error 0.02% FS
  • Non-linearity 0.03%F.S
  • Non-repeatability 0.01% FS
  • Item delivery usually 3 – 6 working days
  • Return Restrictions applicable – see Shipping and Returns T&C’s
Categories: , Tag:

Description

Shearbeam Load Cells – capacity – 1500kg.

Specification

  • Creep (%FS/30min) 0.02.
  • Input resistance 350 plus/minus 3.5 Ohms.
  • Output resistance 350 ± 3.5 Ohms.
  • Insulation resistance plus/minus 5000 M Ohms (50VDC).
  • Zero Balance 1.0% FS.
  • Temperature effect on span %FS/10°C 0.014.
  • Temperature effect on zero %FS/10°C.
  • Temperature, compensated (°C) -10˜+40.
  • Temperature, operating (°C) -35 to +65.
  • Excitation, recommended (V) 5˜12 (DC).
  • Safe overload 150% FS.
  • Ultimate overload 300% FS.
  • Protection Class IP65.
  • Cable length (m) 4.
  • Cable spec 4 wire 5mm.
  • Complete with foot.
