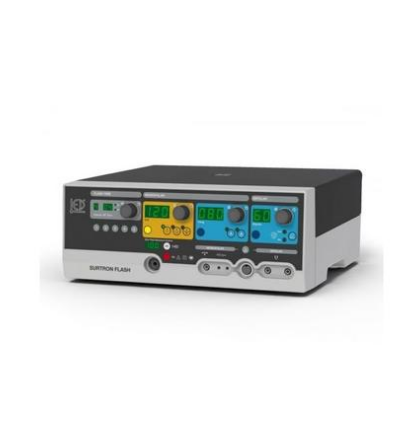

Surtron Diathermy 120W Flash

Description:

SURTRON® FLASH allows a highly professional surgery thanks to the ergonomic and safety solutions normally utilised.

It is continually monitored the connection of neutral electrode and, if a split neutral electrode is used, the neutral electrode to patient contact.

The possibility to control the output functions, as well as the output power level, by the handle, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

Description

Surtron Diathermy 120W Flash

Surtron Diathermy 120W Flash

Main Features:



SURTRON® FLASH 120
Maximum output power CUT W) 120 → 250Ω
Maximum output power BLEND W) 90 → 200Ω
Maximum output power FORCED COAG W) 80 → 150Ω
Maximum output power SOFT COAG W) 60 → 100Ω
Maximum output power BIPOLAR CUTW) 40 → 100Ω
Working frequency 600 kHz
Mains voltage Vac) 115 –230
Mains frequency Hz) 50-60
Electrical class EN606011) I CF
Neutral electrode -F-
Weight Kg 8
Size HxLxD mm 360x150x265

Standard Accessories

SURTRON® FLASH 120
Electrosurgical unit code 10300.10A
Cable for neutral plate disposable/5365 •/1
Kit of assorted electrode length 5cm 10pcs) •/1
Manual of instructions •/1
Not water-proof foot switch •/1
Power supply cable 3x1mm SIE-IEC – 2mt •/1
Reusable handle with finger switches •/1
Steel neutral electrode •/1
